SurfTouch Pro Charging Base
Fins & accessories›SurfTouch Pro Charging Base

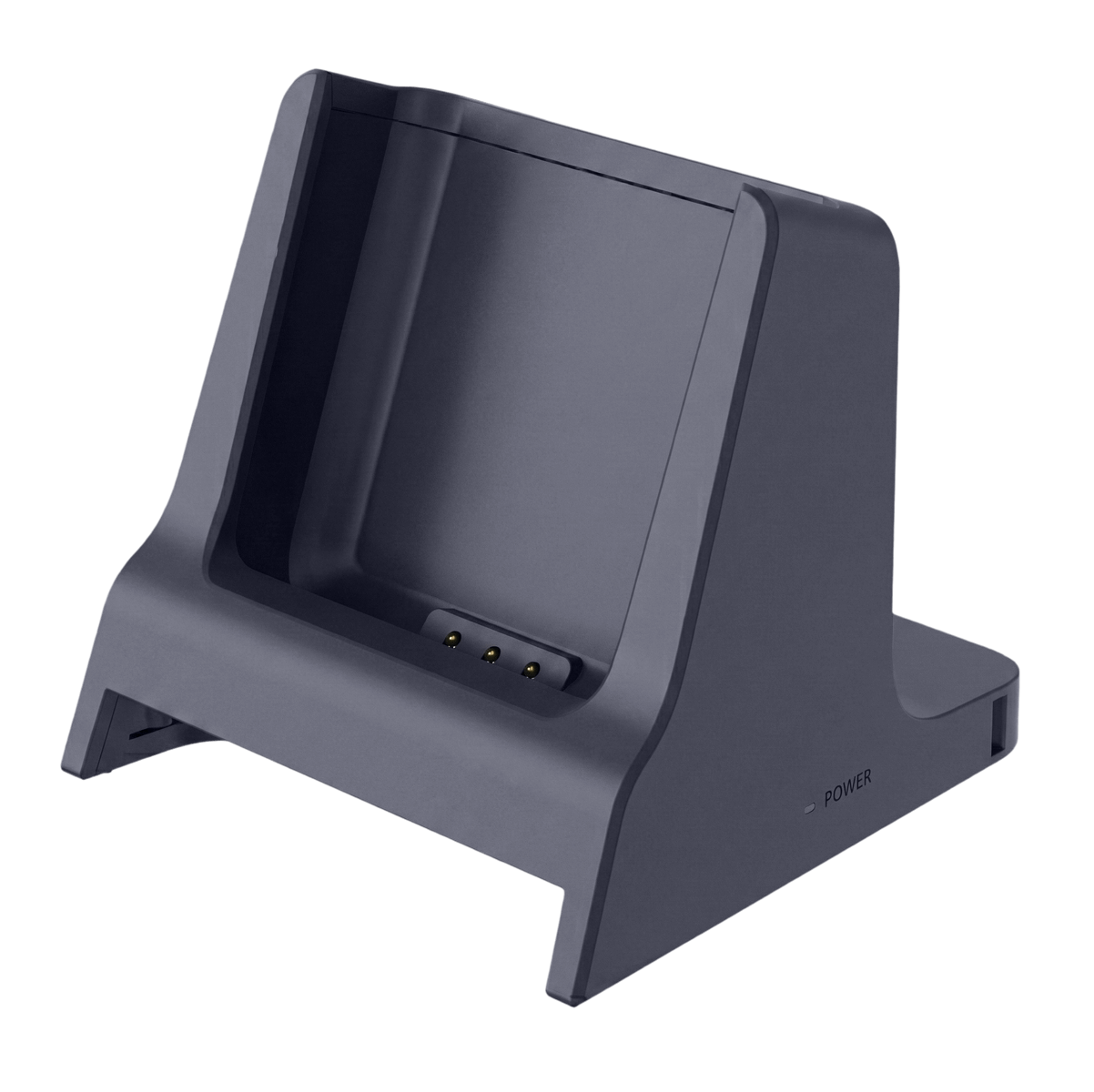

SurfTouch Pro Charging Base

A compact standing charger for your SurfTouch Pro terminal. Drop the terminal in between transactions and it charges on its own, upright and ready for the next customer. Up to four bases can be linked together and powered from a single outlet.

Drop it in, and it charges

Place the terminal in the cradle and the charging pins take over. No cable to plug in, nothing to line up, and the screen stays visible while it charges.

The base is meant for topping up between transactions, at table turnover or between customers at the counter. Power it with the USB-C cable and adapter that came with the terminal: it uses the same adapter, so there is nothing extra to buy.

Link up to four bases

Bases click together side by side through the combination port on the base plate, so a bar or a busy floor can keep a row of terminals charged from one outlet.

A single base runs off the terminal's own USB-C adapter. A row of two to four bases needs the DC Box, a small power unit that clips onto the end of the row and feeds all of them. The DC Box is only used in multi-unit mode and is sold separately.

  • Single base: plug in the terminal's USB-C cable and adapter
  • Two to four bases: combine them, attach the DC Box, and power the DC Box

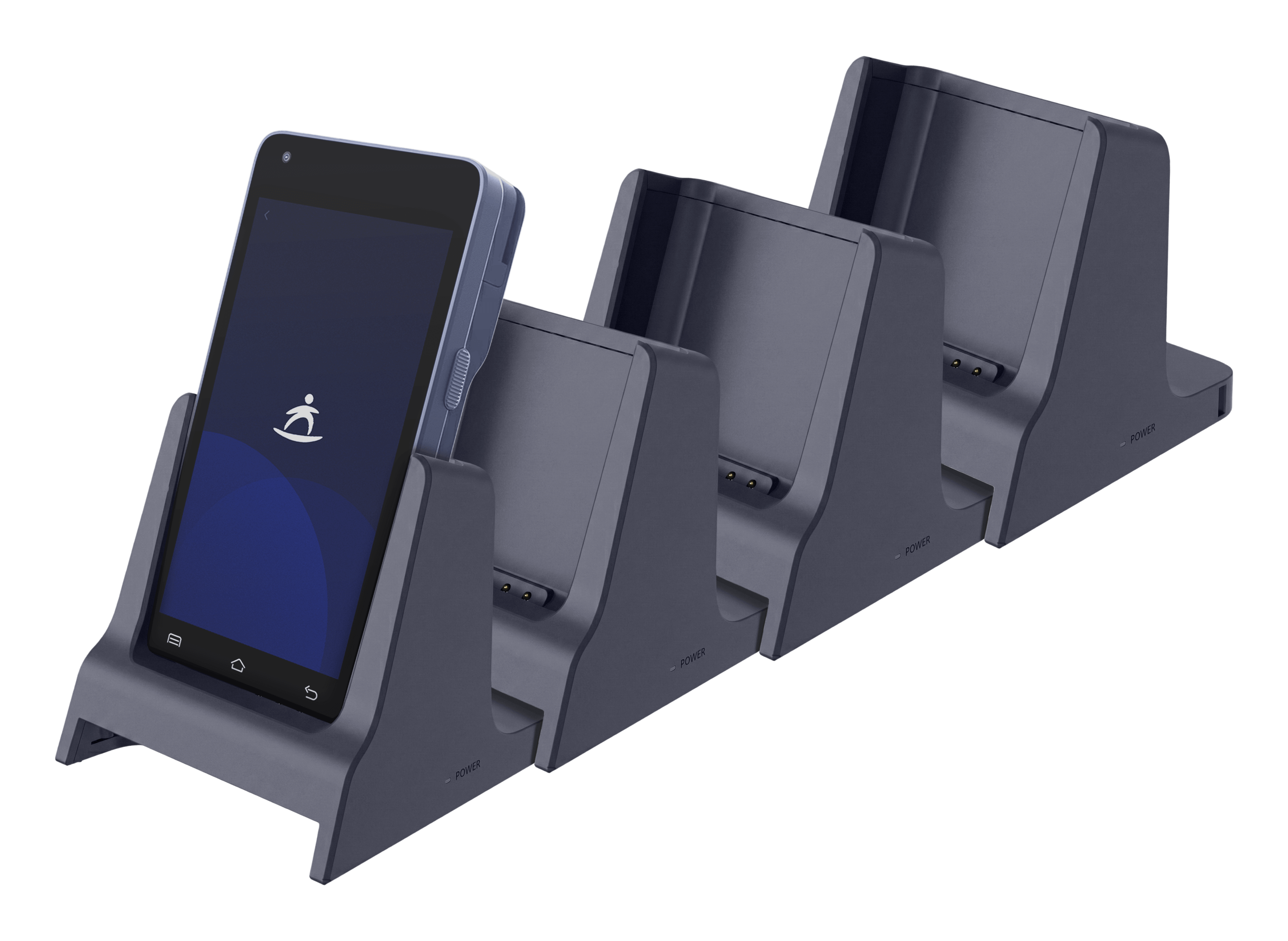

Four SurfTouch Pro Charging Bases linked in a row, with a terminal docked in the first

Works with

Compatible terminals

This accessory is designed for the SurfTouch Pro terminal

Specifications

Type
SurfTouch Pro (D62 Charging base)
Weight
120g
Dimensions
98mm(L)×94mm(W)×90mm(H)
Peripheral ports

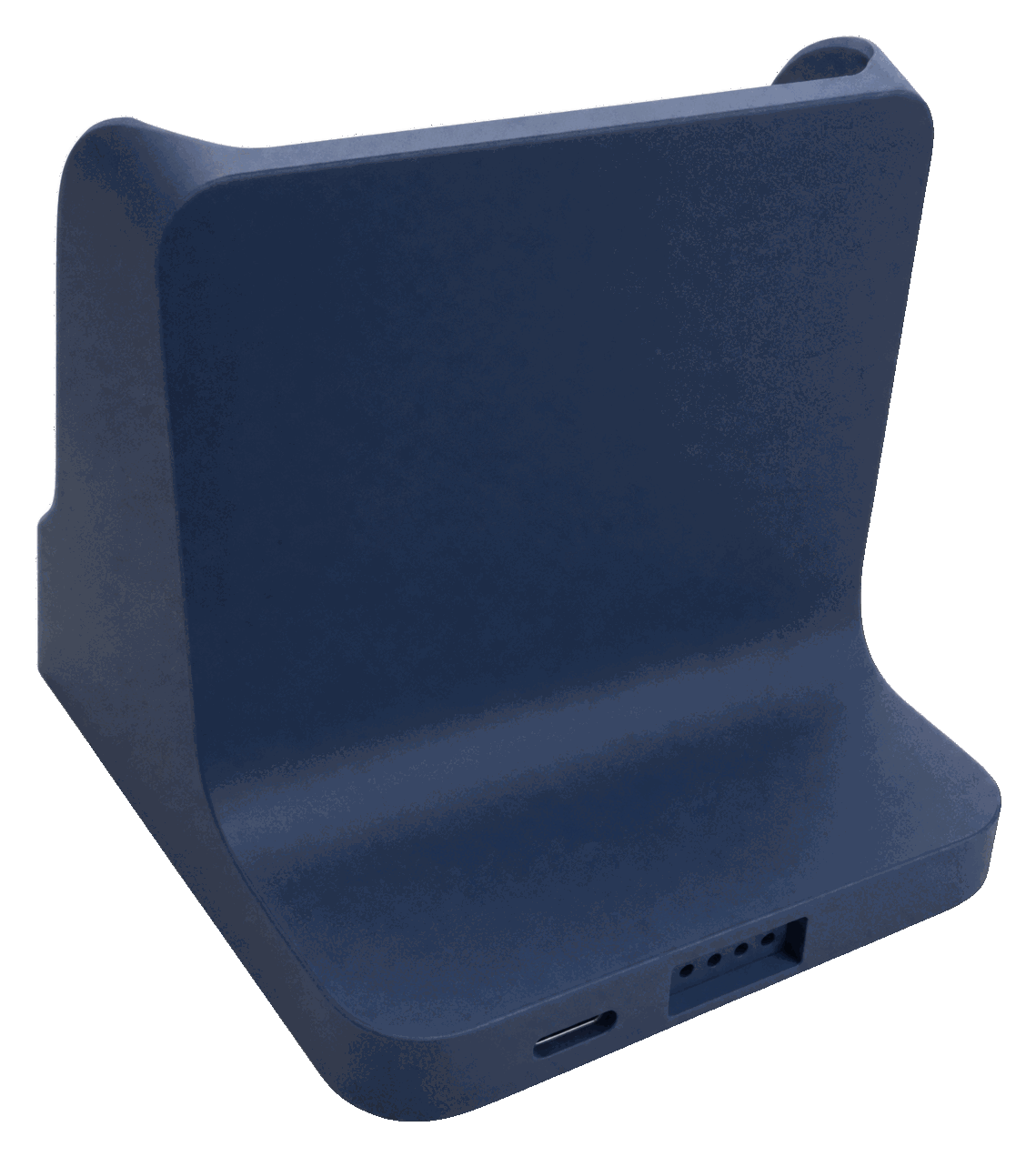

1x Type-C (power), 1x combination port for linking bases and the DC Box
Multi-unit
Up to 4 bases combined, powered through the DC Box (sold separately)
Power Supply
Input: AC100~240V, 50/60Hz | Output: 5.0V DC, 2.0A (shares the same adapter as the terminal)
Operating temperature:
-0°C~40°C (32°F~104°F)

In the box

What ships with the SurfTouch Pro Charging Base

One item: the charging base itself. No cable or adapter ships in this box.

  1. 1× SurfTouch Pro Charging Base Base only

No cable or power adapter ships with the base. Power it with the USB-C cable and adapter that came with your SurfTouch Pro terminal. To link up to four bases and run them off one outlet you also need the DC Box, which is sold separately.
